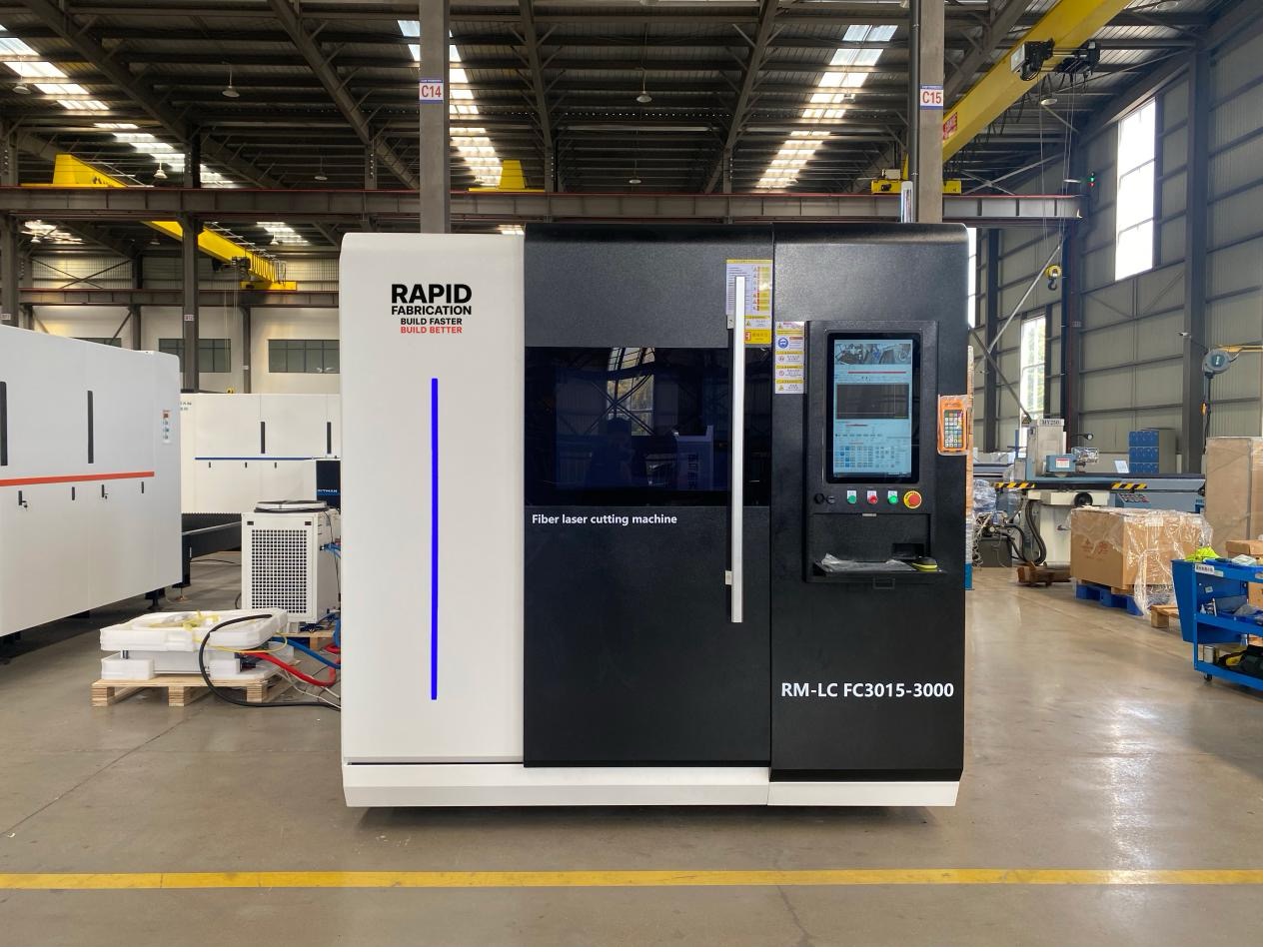

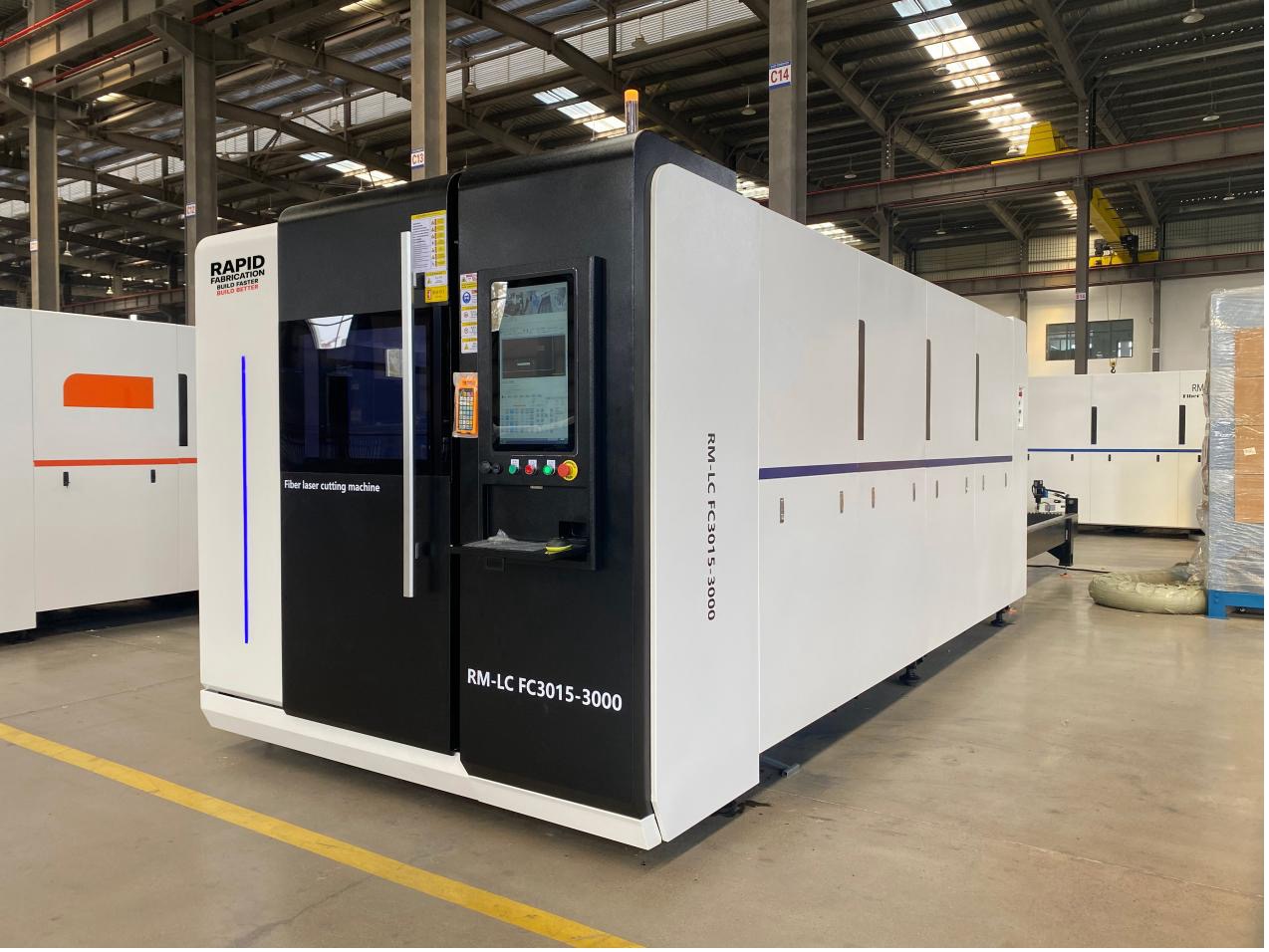

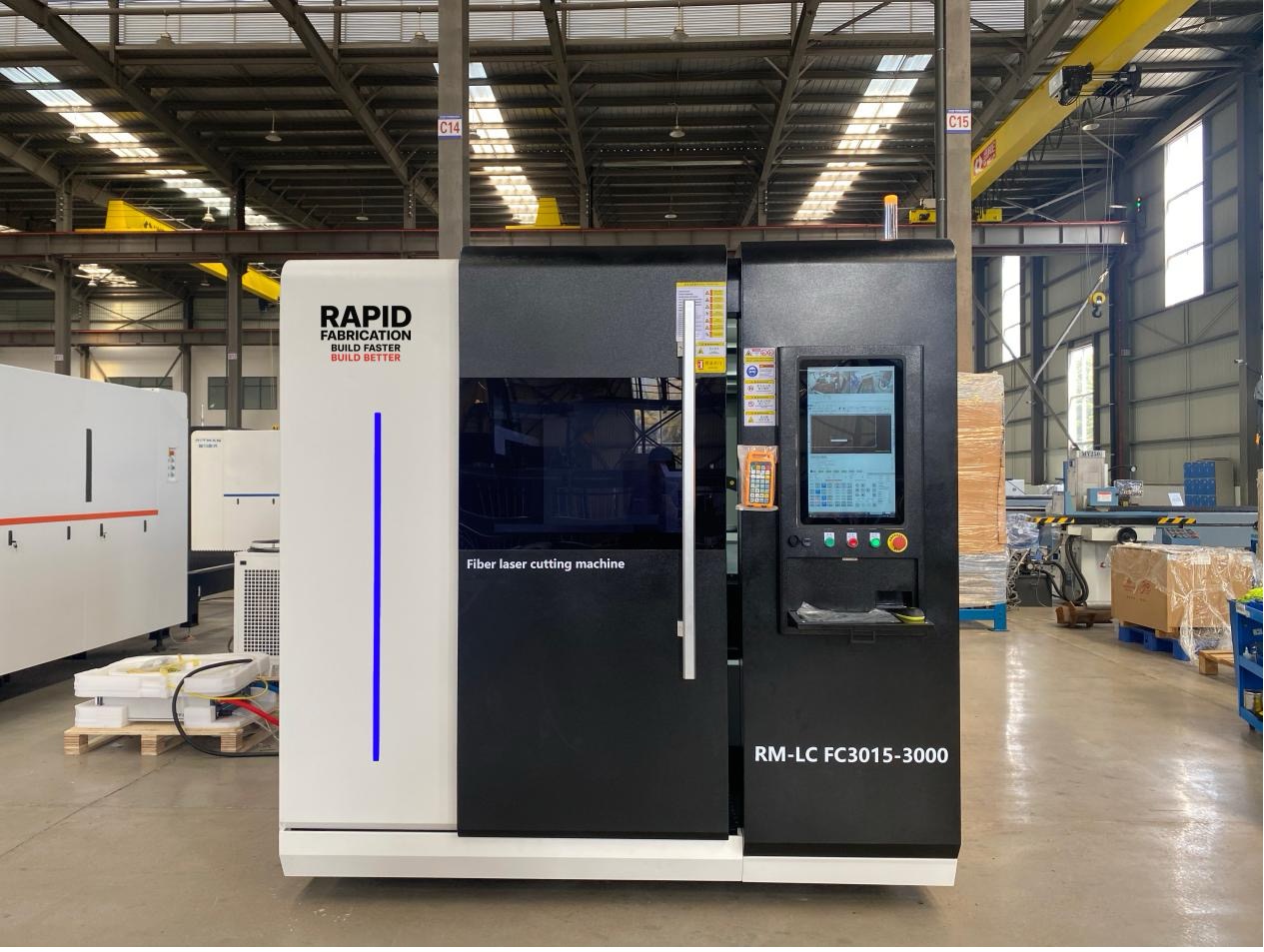

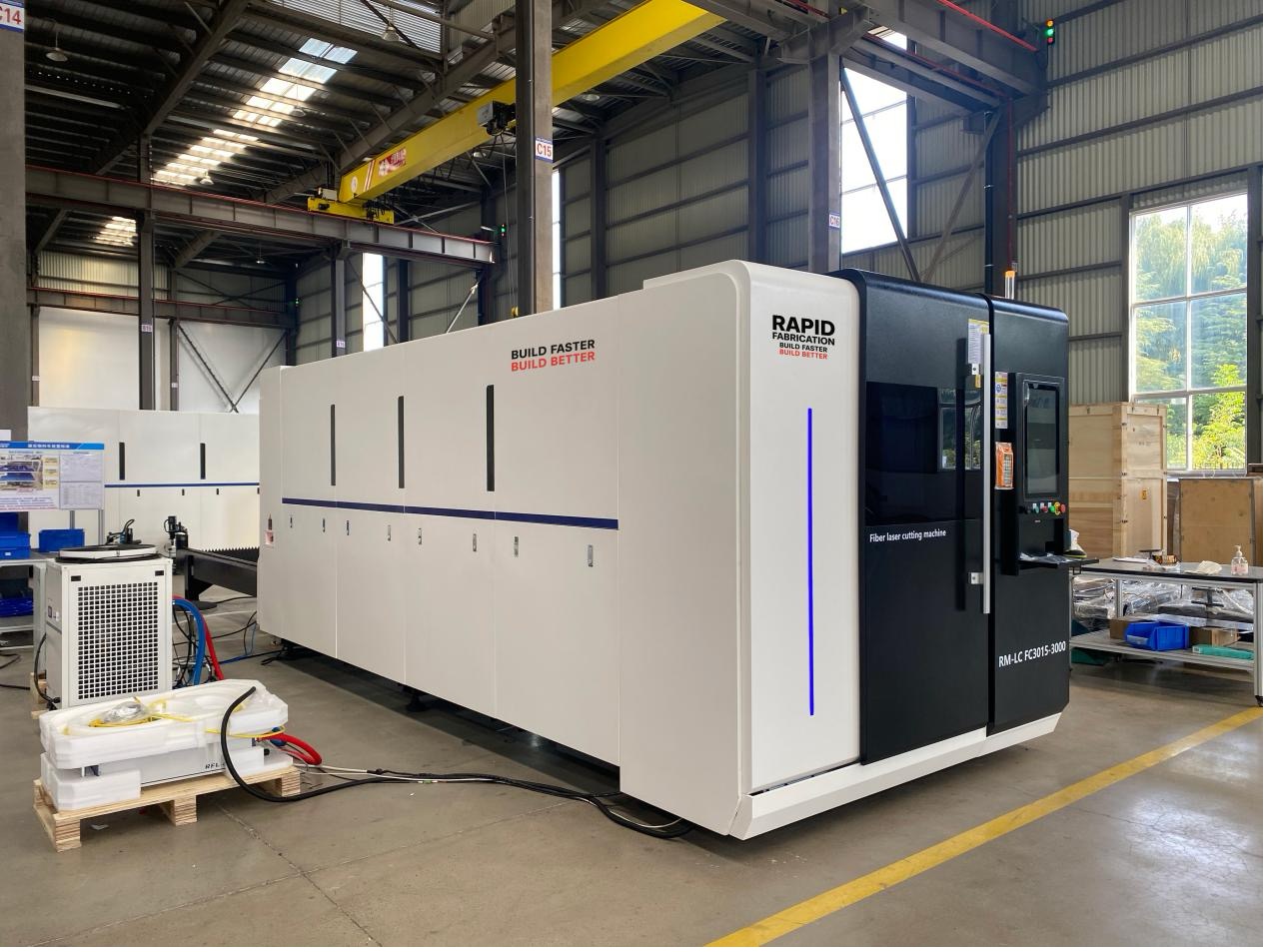

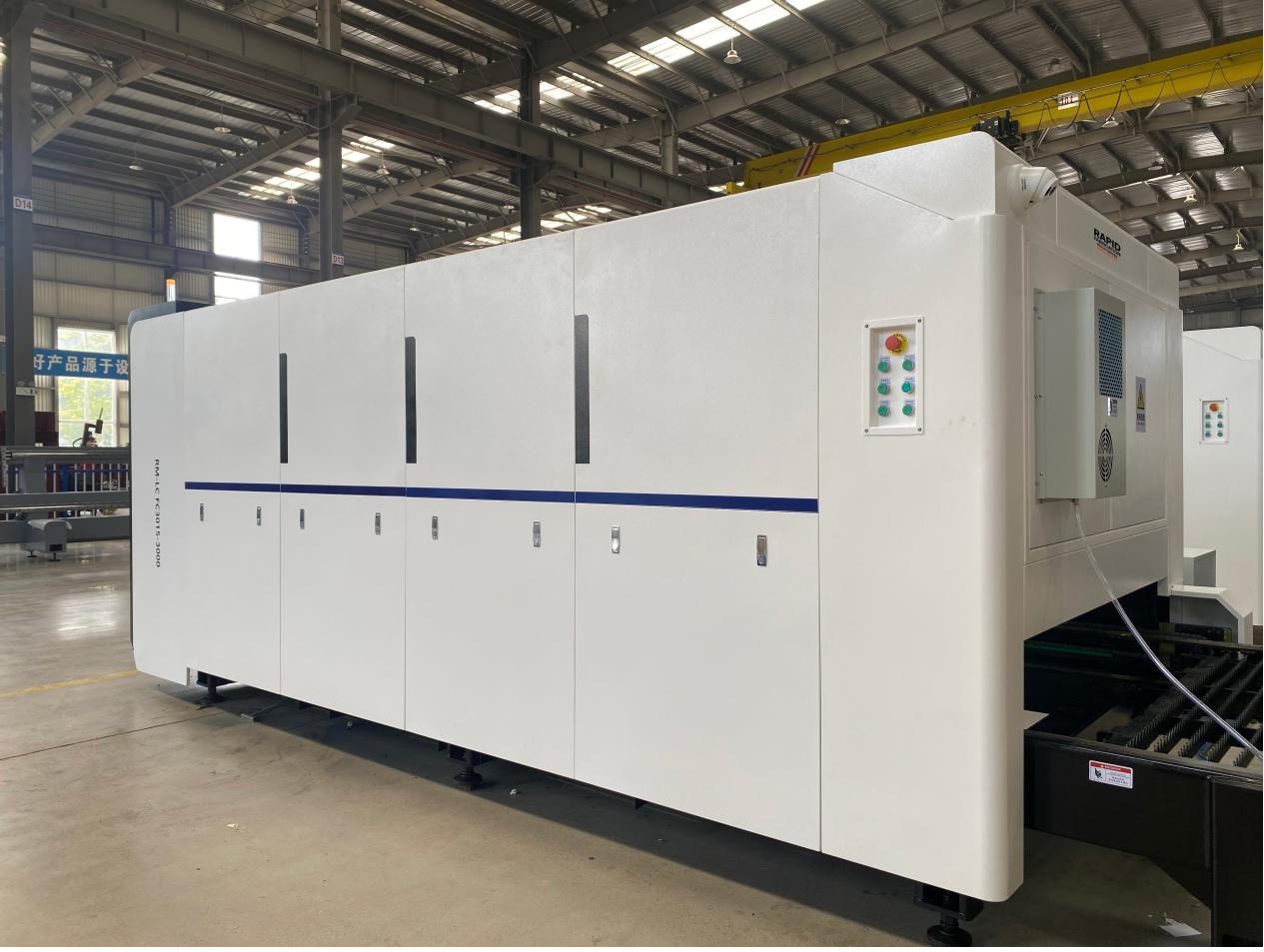

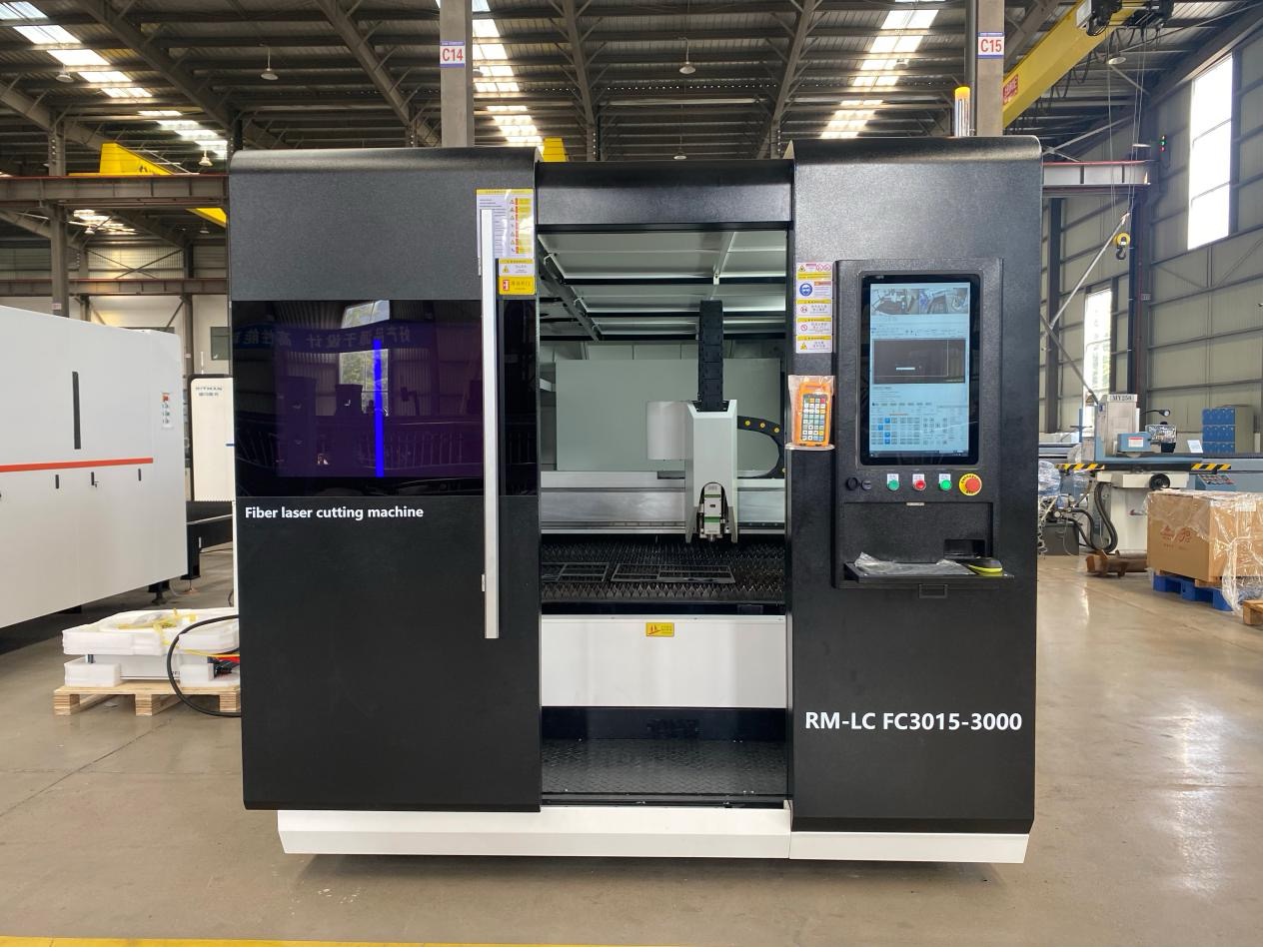

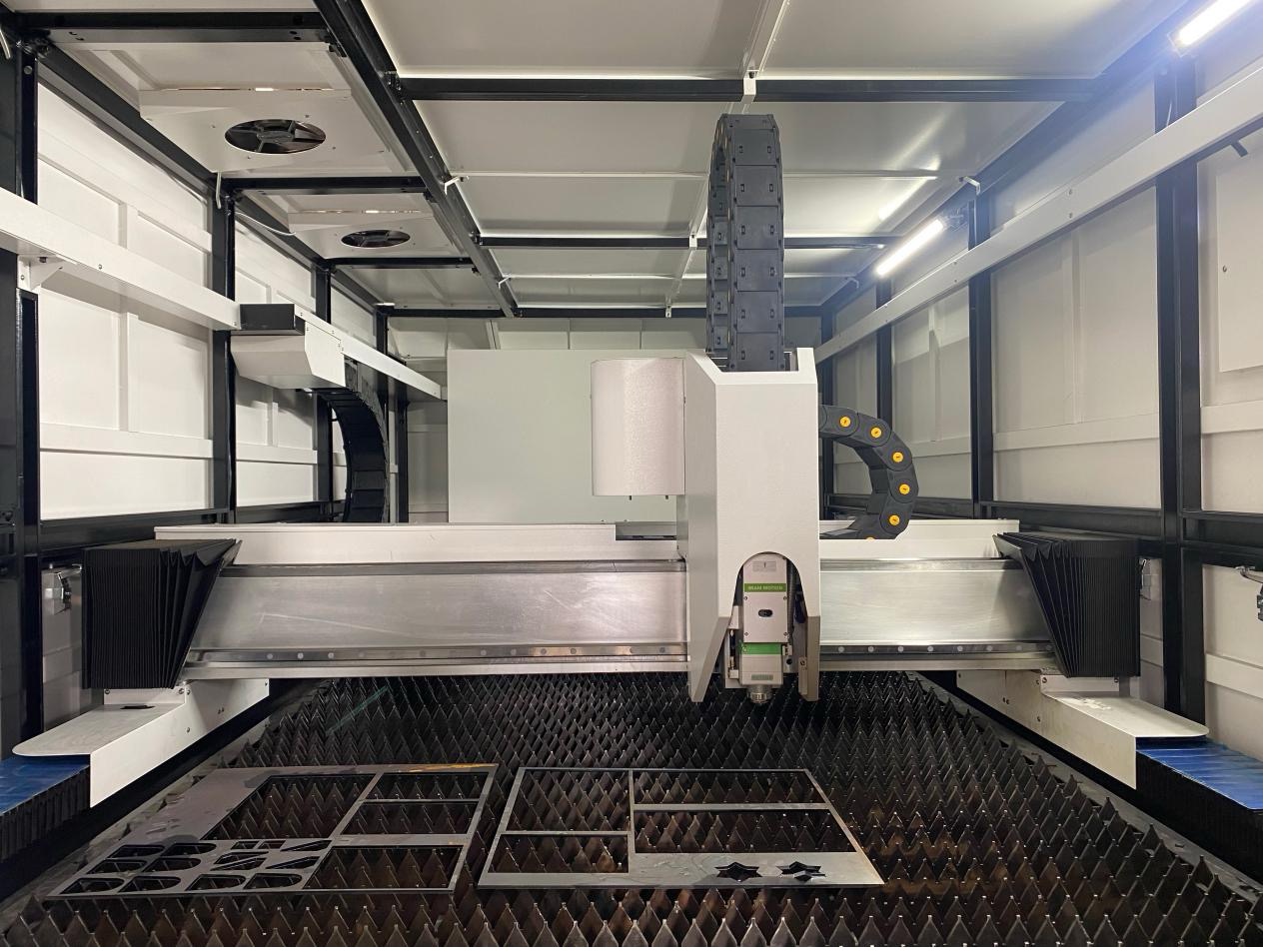

FC3015-Exchange table and Cover

1. Overview

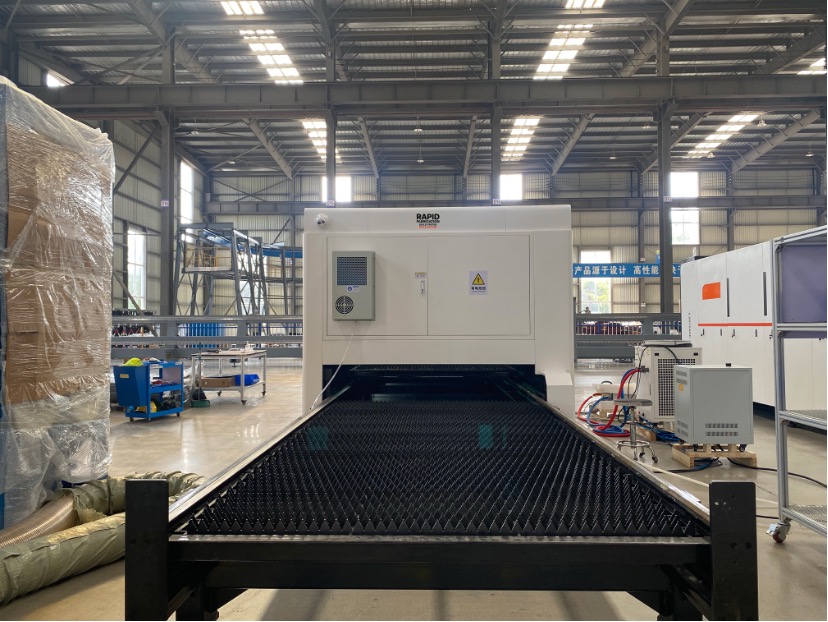

This unit features two 1500 mm x 3000 mm cutting tables — enabling seamless plate changeover during operation. While one table is active, the second is unloaded and reloaded, providing continuous processing without downtime.

  • Laser Power: 12,000 watts (standard)
  • Cut Capacity: Up to 40 mm thick carbon steel
  • Functions: Precision cutting, etching, and part marking
  • Upgrade Options: Higher wattage units available on request
  • Refer to detailed specification sheet for tolerances, speeds, and gas options.

2. Datasheet

Basic parameterWorking area3050mm×1530mm
Cutting guaranteeAutomatic adjustment of cutting gas pressure●
Auto-focus of laser head●
Laser cutting technology expert database●
High quality Cutting Expert Database●
PerformanceMax. acceleration1G
Maximum speed130m/min
Table load bearing1200kg（12kw）
Machine overall dimensions8510x2240x2210mm
Overall weight9500kg
Z axis travel350mm
Positioning accuracy±0.05mm/m
Repositioning accuracy±0.03mm
Φ30mm roundness≤0.15mm
30mm adjacent side≤0.1mm
Optical systemlaser head
Configurationmechanical systemLaser sourceBOCI/Raytools
Machine bedRaycus/MAX
Electrical systemGantry structureLuban lock type plate welding structure bed
X-axis、Y-axis、Z-axisServo motor and driverAviation aluminum profile crossbeam
Linear RailsInovance
RackPEK
ReducerLEITESEN
Control systemModori
lubricating systemDisplay size
Electrical components21.5 inches
Electrical proportional valve
O2 Cutting gas control valve Japan SMC
N2 Cutting gas control valveJapan SMC
Intelligent alarmJapan SMC
Automatic lubrication●
Peripheral systemWater Chiller●
Voltage regulator●
Compressor○
Dust removal○
Total power capacity/current with 20KW source×
Total power capacity/current with 12KW source×
Total power capacity/current with 6KW source46.75KVA/83.6A
Total power capacity/current with 3KW source28.13KVA/50.3A

3. Gallery

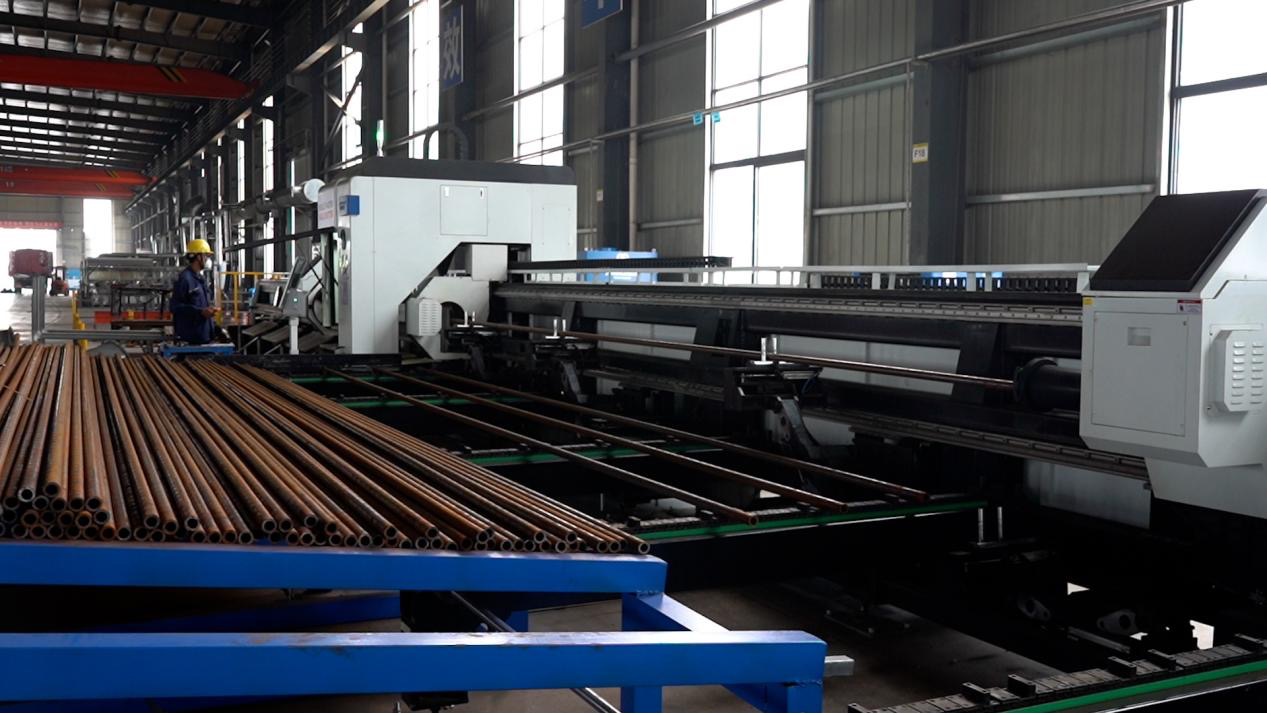

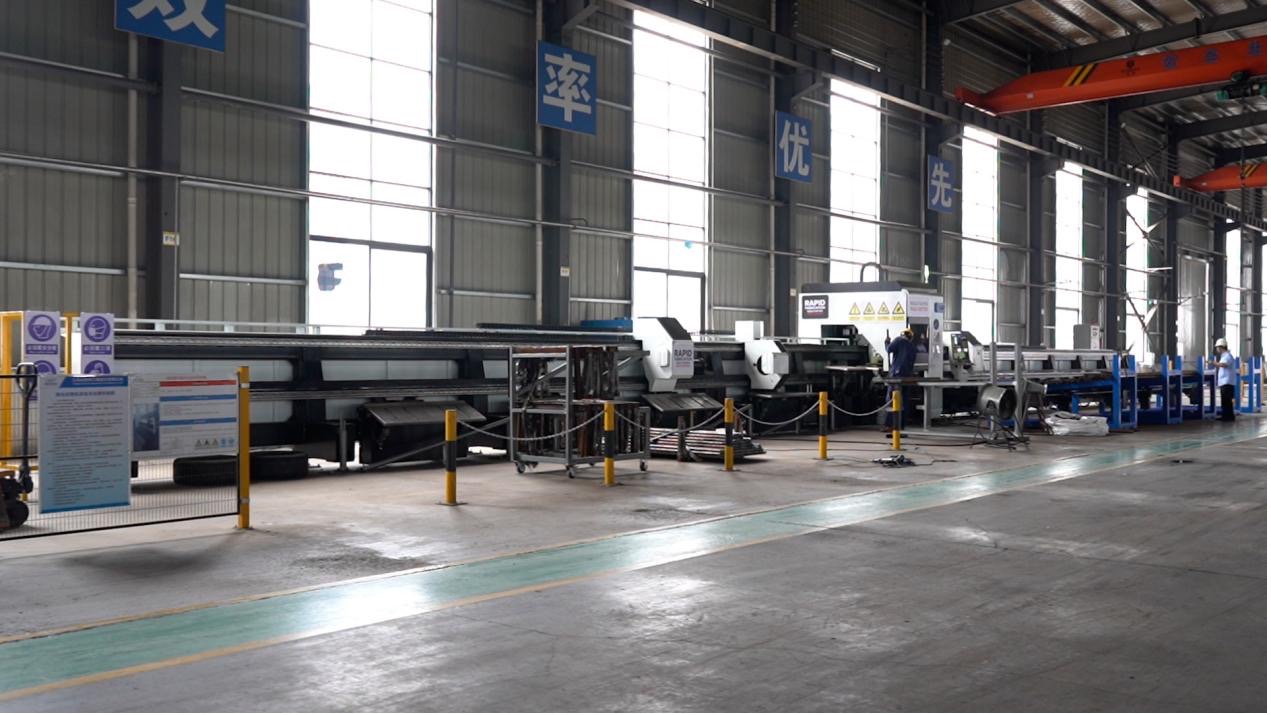

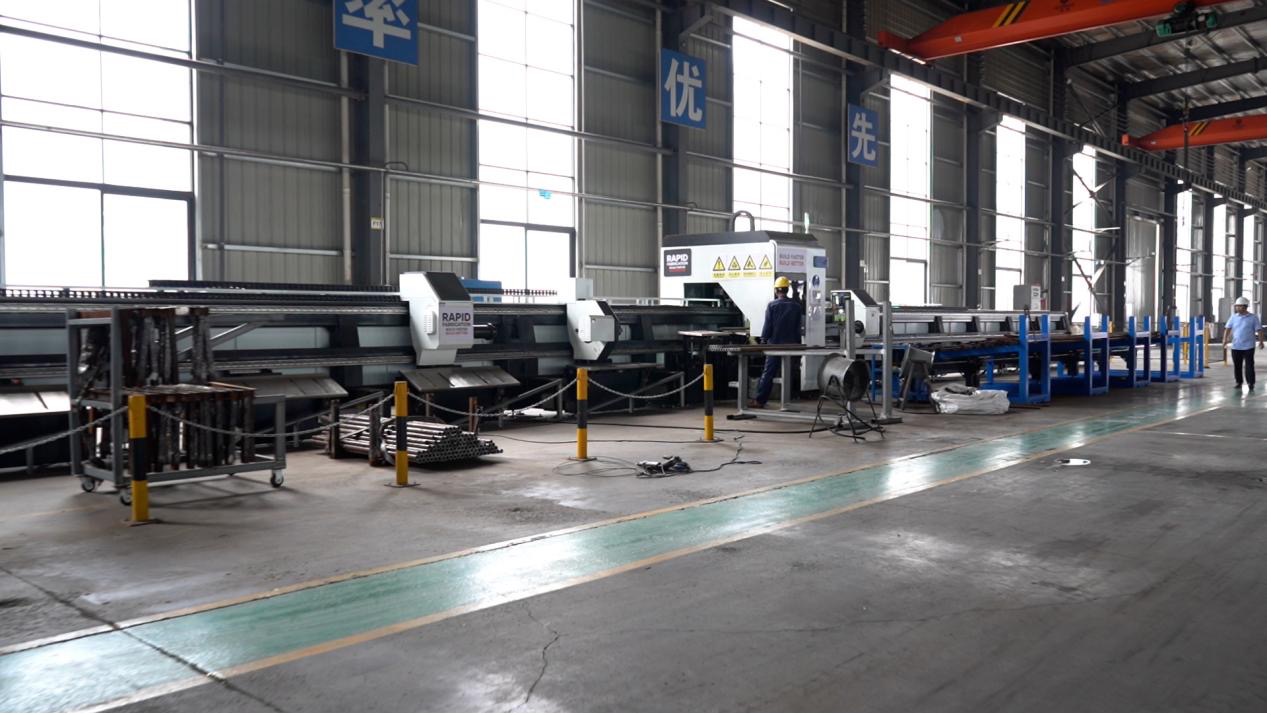

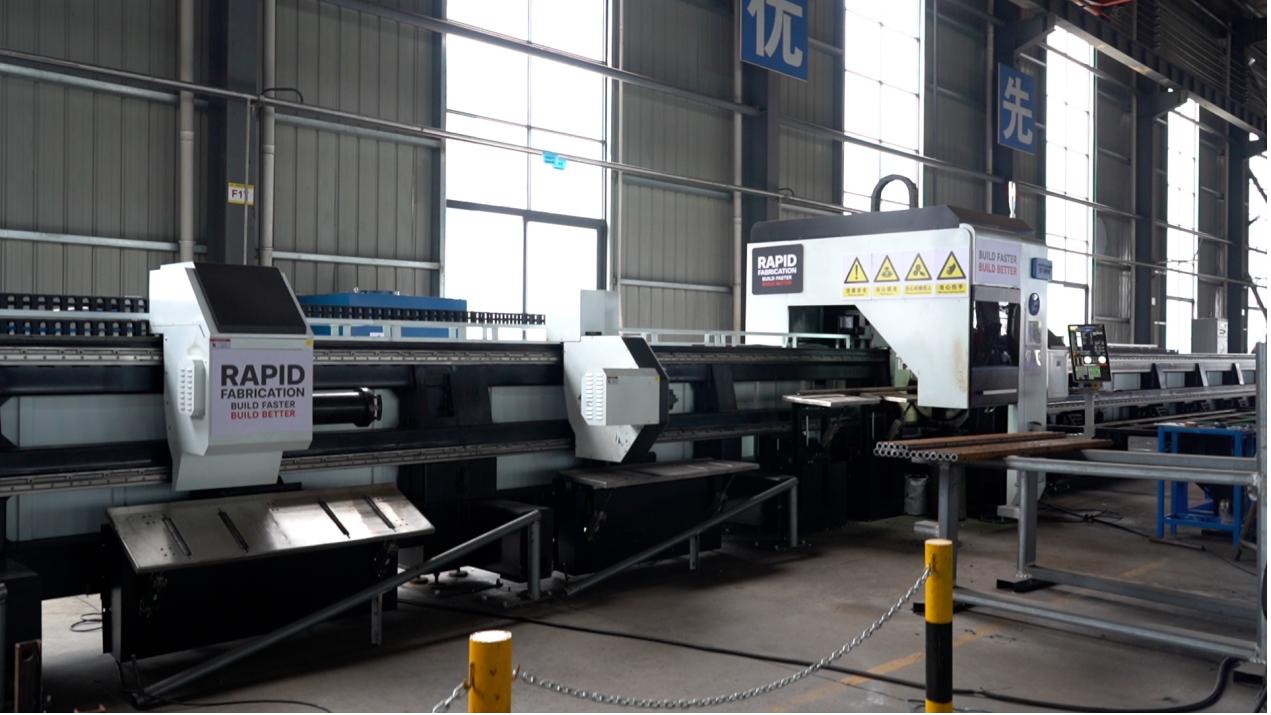

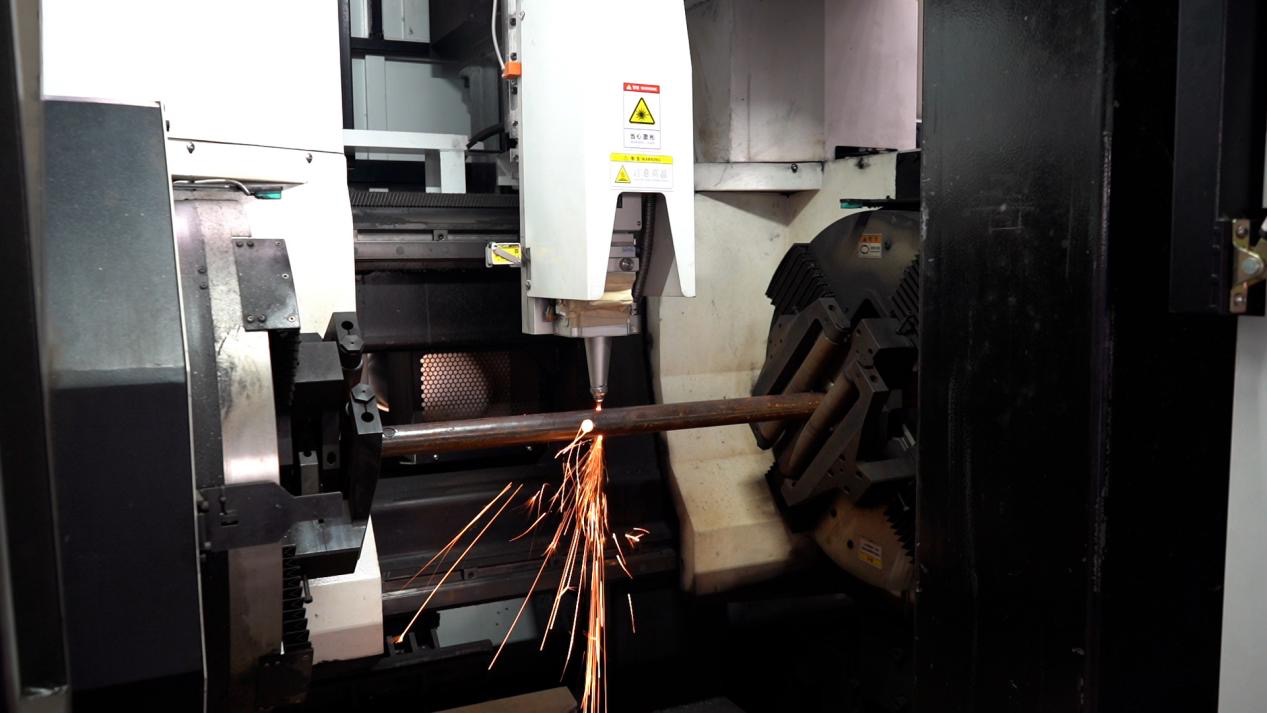

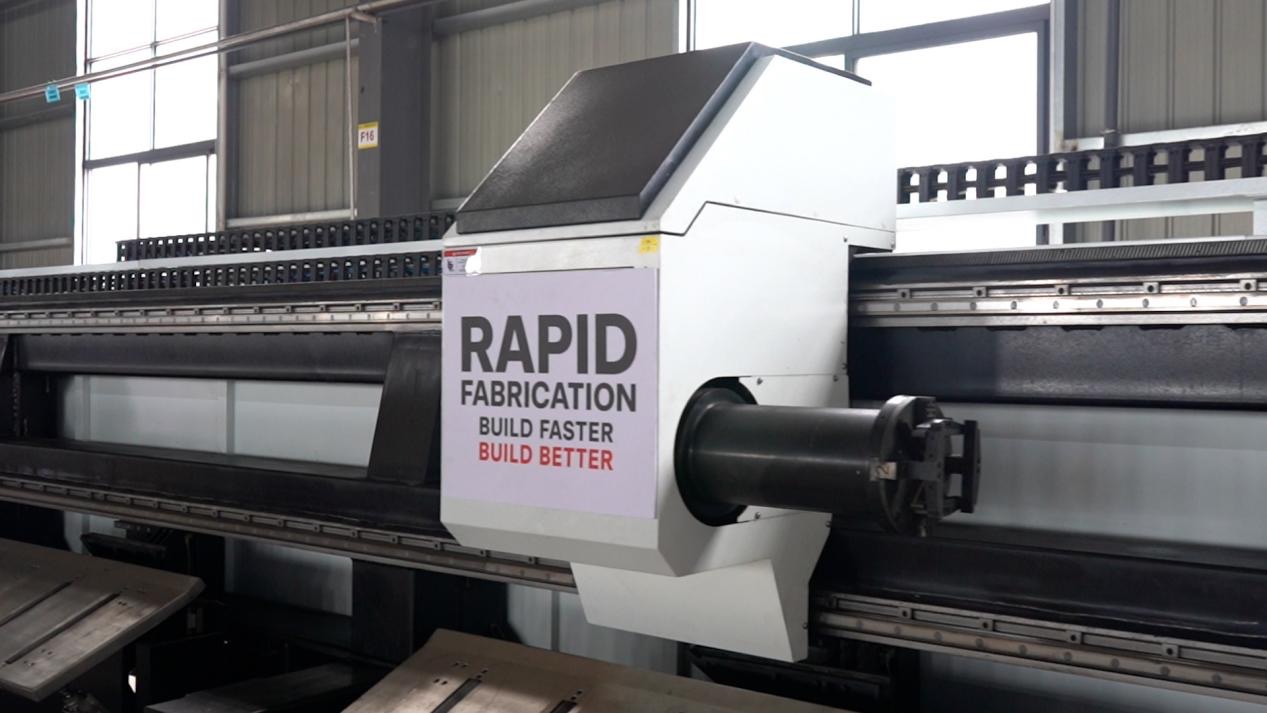

TT7065-3 chucks tube machine

1. Overview

This machine is designed for automated processing of 12-metre lengths in a wide range of hot-rolled steel sections. It supports full-face cutting, etching, and marking using an integrated 12,000-watt laser.

Supported Profiles Include:

  • UB (Universal Beam) – up to 610 mm
  • UC (Universal Column)
  • PFC (Parallel Flange Channel)
  • EA (Equal Angle)
  • UA (Unequal Angle)
  • SHS (Square Hollow Section)
  • RHS (Rectangular Hollow Section)
  • CHS (Circular Hollow Section)
  • FB (Flat Bar)
  • Max Length: 12,000 mm
  • Max Section Size: 610 UB
  • Processing: Simultaneous multi-face cut, etch, and mark

2. Datasheet

Cutting rangetube cross-sectional shapeRound, square, rectangular, oval,
rounded rectangular, Angle steel, channel steel
and other tubes
tube size range≤640mm
Maximum machinable tube length7000mm
Cutting guaranteeHigh Speed Cutting Expert Database●
Automatic tube inspectionEdge-seeking, center-finding
Cutting gas automatic pressure regulation functionO2, N2, air
Automatic focusing function of laser head●
Laser cutting technology database●
Active collision prevention●
Angle steel, channel steel cutting●
Jaw position control●
Gas-saving steady flow nozzle●
ConfigurationCutting speedShortest remaining material0
Positioning accuracy±0.05mm
Repositioning accuracy±0.03mm
Φ20mm roundness≤0.15mm
□20mm square diagonal size difference≤0.20mm
Max. Chuck rotating speed100r/min
Maximum operating speed80m/min
Maximum acceleration0.8G
mechanical systemLaser sourceRaycus/MAX
laser head Raytools/BOCI

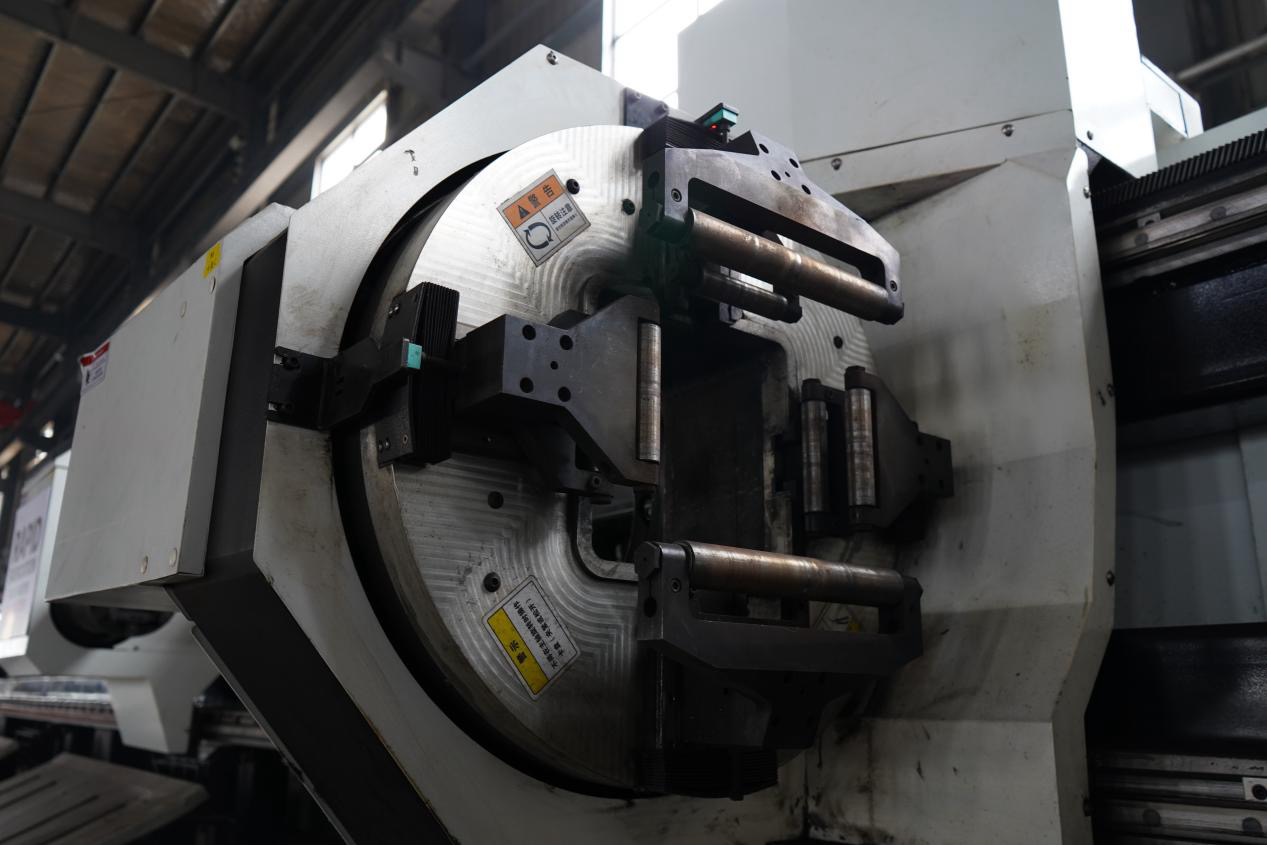

Chuck RY/BUET
Standard blanking rack●
Following servo feeding bracket○
Semi automatic feeding○
Fully automatic feeding○
Electrical systemLinear RailsPEK
RackLEITESEN
X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver
Inovance
ReducerReducer
Control system

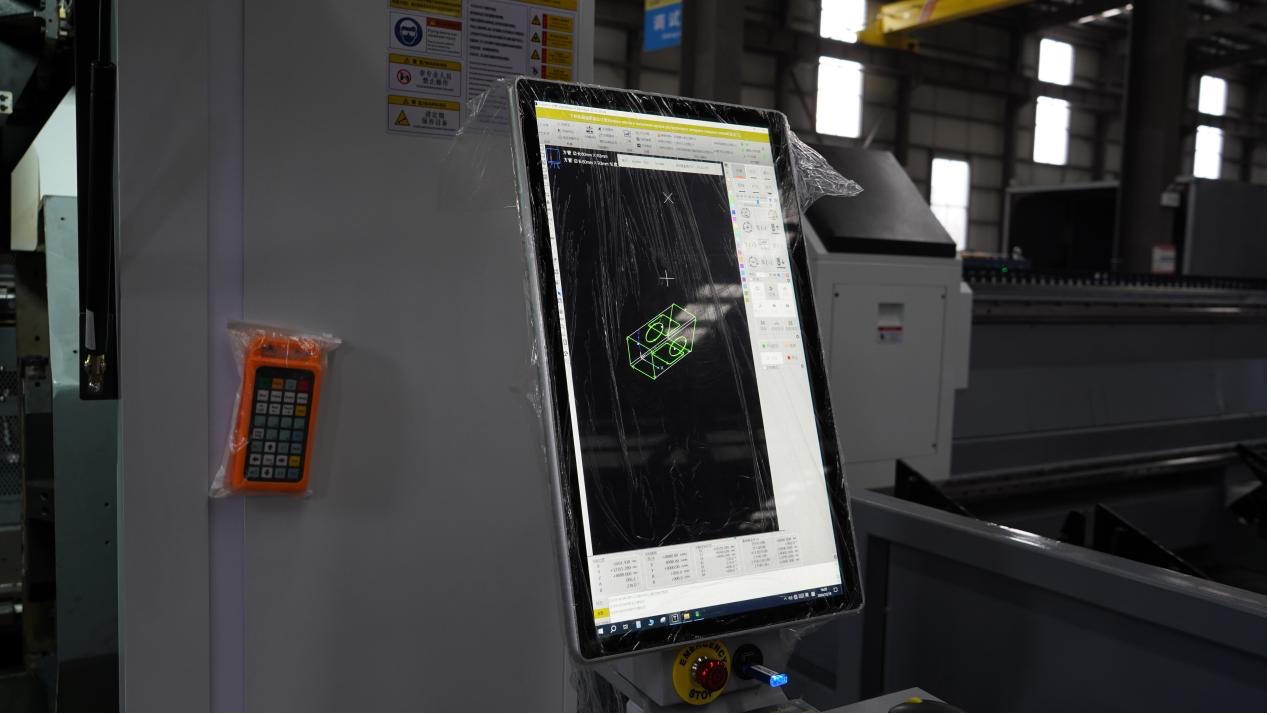

lubricating systemDisplay size21.5 inches
Proportional gas valveJapan SMC
O2 Cutting gas control valveJapan SMC
N2 Cutting gas control valveJapan SMC
Peripheral systemFile formatIGS, DXF, G Code
Water Chiller●
Voltage regulator●
Compressor○
Dust removal○
Total power capacity/current with 12KW source×
Other parameters configurationTotal power capacity/current with 6KW source63KVA/112.66A
Total power capacity/current with 3KW source44.38KVA/79.36A
Total power capacity/current with 2KW source37.5KVA/67.06A
Total power capacity/current with 1.5KW source34.06KVA/60.91A

3. Gallery

Custom Tekla Structures Plugin

Developed specifically for integration with our equipment, this plugin operates directly within Tekla Structures and enhances the model-to-fabrication workflow.

Key Functions:

  • Generates cut path geometry within the 3D model
  • Outputs shop drawings with accurate shaft and part marks
  • Follows a strict upper/lower case protocol for mark consistency
  • Applies intelligent suffix tags to part numbers for fast identification and sorting

Tagging System Examples:

  • Part numbers ending in ‘H’ = Plates for Hollow Sections (SHS, RHS, CHS)
  • ‘V’ = Plates for Verticals (typically Columns)
  • ‘H’ = Plates for Horizontals (Rafters, Struts)
  • ‘O’ = Plates for Other/General Components

This classification improves plate storage logic and dramatically reduces search and handling time during assembly.
